The hydraulic system in an underground dump truck is a marvel of engineering, playing a pivotal role in the vehicle's functionality and performance. As a leading supplier of underground dump trucks, I've witnessed firsthand the significance of a well - designed hydraulic system. In this blog, I'll delve into the intricacies of what the hydraulic system in an underground dump truck is like, its components, functions, and importance.
Components of the Hydraulic System
The hydraulic system in an underground dump truck consists of several key components. The heart of the system is the hydraulic pump. This pump is responsible for converting mechanical energy from the truck's engine into hydraulic energy. It draws in hydraulic fluid from the reservoir and pressurizes it, sending it through the system to power various functions.
Next, we have the hydraulic cylinders. These are used to perform the actual work, such as lifting the dump body. When pressurized hydraulic fluid enters a cylinder, it moves a piston, which in turn generates a linear force. In the case of an underground dump truck, the cylinders are designed to be strong enough to lift heavy loads of mined materials.
Valves are another crucial part of the hydraulic system. They control the flow, pressure, and direction of the hydraulic fluid. There are different types of valves, including control valves, relief valves, and check valves. Control valves determine when and how much fluid is sent to the cylinders, allowing for precise control of the dump body's movement. Relief valves protect the system from over - pressurization, while check valves ensure that the fluid flows in one direction only.
The hydraulic reservoir stores the hydraulic fluid. It also serves as a place for the fluid to cool down and for contaminants to settle. A well - designed reservoir has proper ventilation and a filter to keep the fluid clean.
Functions of the Hydraulic System
One of the primary functions of the hydraulic system in an underground dump truck is to lift and lower the dump body. When the operator activates the controls, the hydraulic pump sends pressurized fluid to the lift cylinders. The cylinders then extend, raising the dump body to discharge the load. Once the load is unloaded, the fluid is redirected, and the cylinders retract, lowering the dump body back to its original position.
The hydraulic system also plays a role in steering the truck. Power steering in underground dump trucks is often hydraulic. The hydraulic pump provides the necessary pressure to assist the driver in turning the wheels, making it easier to maneuver the large and heavy vehicle in the confined spaces of underground mines.
In addition, some underground dump trucks use hydraulic systems for braking. Hydraulic brakes offer better stopping power and more precise control compared to mechanical brakes. The hydraulic pressure is used to activate the brake calipers or drums, ensuring safe and efficient braking.
Importance of a Reliable Hydraulic System
In an underground mining environment, reliability is of utmost importance. The hydraulic system is the backbone of the dump truck's operation, and any failure can lead to significant downtime and loss of productivity. A reliable hydraulic system ensures that the truck can perform its tasks efficiently, whether it's transporting materials from the mining face to the surface or carrying out other essential operations.
The harsh conditions in underground mines, such as high humidity, dust, and extreme temperatures, can put a lot of stress on the hydraulic system. That's why our underground dump trucks are equipped with high - quality hydraulic components that are designed to withstand these challenging conditions. We use advanced sealing technologies to prevent dust and moisture from entering the system, and the hydraulic fluid is carefully selected to have excellent resistance to oxidation and wear.
Our Product Offerings

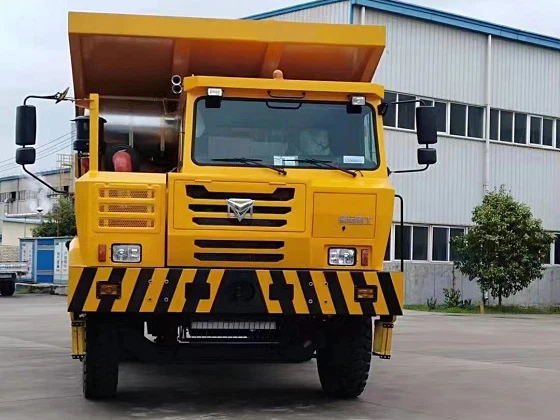

As a supplier of underground dump trucks, we offer a range of models with state - of - the - art hydraulic systems. Our 60 Tons Wide Body Dump Truck is a popular choice among mining companies. It features a powerful hydraulic system that can handle heavy loads with ease. The lift cylinders are designed to provide smooth and stable lifting, ensuring that the load is discharged safely.
Our Mining Transport Truck is another excellent option. It is equipped with a sophisticated hydraulic steering system that allows for precise control in tight underground spaces. The hydraulic brakes on this truck provide reliable stopping power, even when the truck is fully loaded.
For those in need of a Concrete Mixer Truck For Mining, we have a model that uses a hydraulic system to rotate the mixing drum. This ensures that the concrete is thoroughly mixed during transportation, and the hydraulic system also allows for easy discharge of the concrete at the construction site.
Maintenance and Troubleshooting
Proper maintenance of the hydraulic system is essential to ensure its long - term performance. Regularly checking the hydraulic fluid level, inspecting the hoses and connections for leaks, and changing the fluid and filters at the recommended intervals are some of the basic maintenance tasks.
In case of any issues with the hydraulic system, our team of experts is always ready to provide support. We offer comprehensive troubleshooting services to diagnose and fix problems quickly. Whether it's a problem with the pump, cylinders, or valves, we have the knowledge and experience to get the truck back up and running in no time.
Conclusion
The hydraulic system in an underground dump truck is a complex and vital part of the vehicle. It enables the truck to perform its various functions, from lifting and dumping loads to steering and braking. At our company, we are committed to providing high - quality underground dump trucks with reliable hydraulic systems. If you're in the market for an underground dump truck or need to upgrade your existing fleet, we invite you to contact us for a detailed discussion. Our team of experts will be happy to assist you in finding the right truck for your specific needs and answer any questions you may have.
References
- "Hydraulic Systems in Heavy - Duty Vehicles" - A technical manual on hydraulic systems used in large vehicles.
- "Underground Mining Equipment Handbook" - A comprehensive guide to equipment used in underground mining, including dump trucks and their hydraulic systems.
