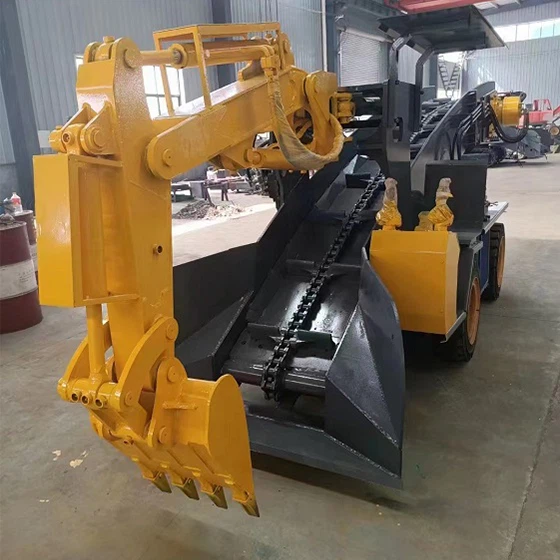

Underground Mining Slag Scraper
introduction
The underground mining scraper is equipped with a high-performance power system. Its engine has the characteristics of high power output and low fuel consumption, providing strong and stable power support for the overall mechanical operation. The underground mining scraper incorporates advanced intelligent operation control technology, making the operation easier and more precise. Safety is the primary consideration for underground mining operations. This product fully considers safety during the design and manufacturing process, and adopts multiple safety protection measures. The product material adopts a patented double-helix alloy cutter disc system, equipped with a tungsten steel-diamond composite cutter head with a hardness of up to HRC90. The unique adaptive pressure regulation system adjusts the scraper down force in real time through hydraulic sensing, effectively avoiding jamming or idling, and ensuring that the equipment can operate stably under various working conditions. The key components of the underground mining scraper adopt a modular quick-release design, and the cutter disc, chain and other wearing parts support 10 minutes of quick replacement to minimize downtime. The three-proof fuselage has been specially treated with acid and alkali resistance, explosion-proof, moisture resistance and other characteristics. The average failure interval time exceeds 2000 hours and the failure rate is less than 1%. In terms of stability, the underground mining scraper adopts a solid chassis structure and a reasonable center of gravity design. Even when driving in rugged underground tunnels, it can maintain good stability and prevent tipping and sliding.
Working Diagram
|
Product number |
CS-60L |
|
Excavation width |
≥4200 |
|
Digging distance (from shovel mouth) |
≥1600 |
|
Excavation height |
≥2700 |
|
Digging depth |
≥450 |
|
Unloading height |
1900(variable) |
|
Minimum unloading height |
1300(variable) |
|
Unloading distance |
1600(Can be lengthened or shortened) |
|
Maximum rotation angle |
±50 |
|
Total Weight |
≈5.8 |
|
Appearance (length × width × height) |
4800×1500×1500 |
|
Loading capacity |
≈60m³/h |
|
Minimum turning radius |
4600mm |
|
Walking speed (m/min) |
4.5/2 |
|
Ground clearance |
200(can be increased) |
|
Fixed work stress |
20 |
|
Gradeability |
≤15(can be increased) |
|
Total motor power |
22KW |
|
Maximum material passing size |
780mm×500mm×400mm |
|
(length × width × height) |
≤15(Adapt to the ground) |
|
Adapt to roadway slope |
≥1.8×1.8 |
feature
Efficient operation
Underground Mining Slag Scraper is equipped with high-performance motors and hydraulic systems. The total motor power is up to 22KW, which provides strong and stable power output for the equipment. The hydraulic system ensures efficient transmission and precise control of power, allowing the excavation device to cut into slag or stone quickly and powerfully. In addition, advanced excavation device design, such as special slag scraping plates and chain or plate transmission systems, can easily cope with slag and rocks of various hardnesses and improve excavation efficiency. The loading capacity of the slag scraper can reach tens of cubic meters per hour, which significantly shortens the operation cycle and improves production efficiency.
Flexible control
Underground Mining Slag Scraper adopts an advanced control system, combined with flexible hydraulic steering and travel mechanism so that the equipment can easily turn and move in narrow spaces. The control system is usually equipped with two operation modes: remote or manual. The operator can choose the most suitable operation mode according to the actual operation needs. The maximum rotation angle of the Underground Mining Slag Scraper can reach ±50°, and the minimum turning radius is only a few meters, which makes the equipment flexible in complex and changeable underground environments.
Safe and reliable
Underground Mining Slag Scraper is equipped with complete protective devices and alarm systems, such as dust and explosion-proof design, overload protection device, emergency braking system, etc., which effectively reduces the safety risks during operation. In addition, the application of an electric full hydraulic control system also greatly improves the operation stability and safety of the equipment.
Company Profile and FAQ
Shandong Changsong Engineering Machinery Co., Ltd. attaches great importance to team building and has a professional, stable and efficient management and technical team. By providing competitive salary packages, a good working environment and broad development space, it has attracted a large number of outstanding talents in the industry. Regular employee training is organized, including technical training, management training, etc., to improve the professional skills and comprehensive quality of employees.
FQA
Q: Do you offer after-sales support and warranty for your trucks?
A: Yes, we provide comprehensive after-sales support, including warranty coverage and maintenance services to ensure customer satisfaction and the long-term reliability of our trucks.
Q: How do I place an order for your trucks?
A: To place an order, simply contact our sales team through the Made in China platform or our official website. Our sales representatives will assist you with product selection, customization options, pricing, and shipping arrangements.
Q: What is the lead time for your trucks?
A: Delivery times may vary depending on order volume, customization requirements, and shipping logistics. Our sales team will provide you with an estimated delivery schedule based on your specific order details.
Q: Do you have international shipping?
A. Yes, we ship trucks to customers all over the world. We work with reliable logistics partners to ensure safe and timely delivery to your desired location
Q: What information should I let you know if I want to get a quote?
A: Please let us know your purpose, road condition, cargo type, tonnage of your cargo, trailer size, quantity, etc. The more information you provide, the more accurate the model and price you'll get.
