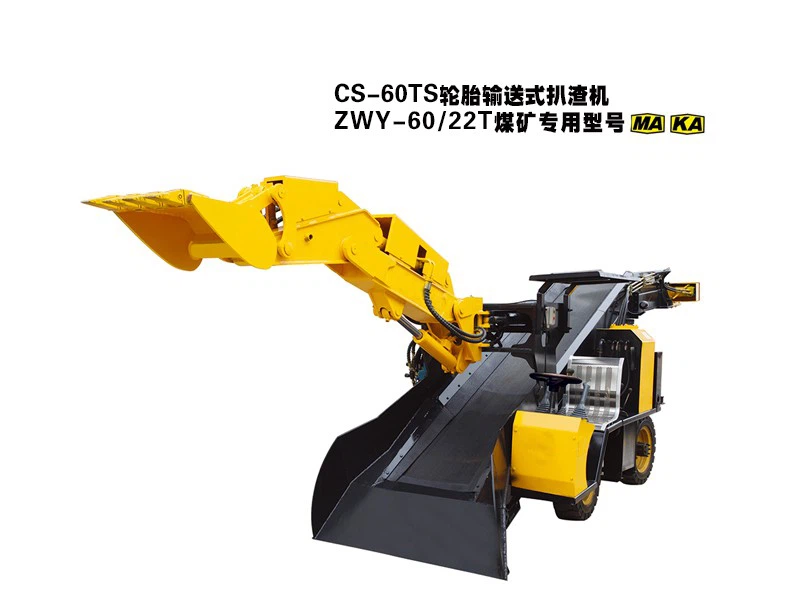

Underground Tunnel Mucking Loader
introduction
Compared with traditional slag loaders, this product has a breakthrough low-body design, which is perfectly suitable for low and narrow spaces such as subways, water diversion tunnels, and mine tunnels. The chassis configuration can flexibly turn the radius and move freely in a limited space to avoid becoming a "stumbling block" to the progress of excavation. The key structural parts of the underground tunnel slag loader are made of high-strength wear-resistant steel to strengthen the stress parts, which are specially designed for bumps, impacts, and high-load operations in the tunnel. Super long service life, no fear of rock collision and continuous wear. This product is equipped with a high-torque drive axle and special pattern deep-tooth tires/crawler type optional. It shows excellent traction and passability on muddy, slippery, and gravel-stacked tunnel floors, and refuses to be trapped. It is also equipped with a low-emission, high-reliability turbocharged diesel engine, which provides a steady stream of powerful power to ensure that it is still powerful under heavy loads and climbing conditions. The maximum excavation height of the product can reach ≥2700 meters, and the excavation depth is an eye-catching 450. From finite element analysis and stress optimization in the design phase, to strict quality control in the production process, to comprehensive performance testing before leaving the factory, the company ensures that the underground clearing solution delivered to your site is high-performance, durable and trustworthy.
Work Diagram
|
Product model |
CS-60L |
|
Excavate the width |
≥4200 |
|
Dig distance (from shovel) |
≥1600 |
|
Excavate the height |
≥2700 |
|
Excavating depth |
≥450 |
|
Discharge height |
1900 (variable) |
|
Minimum unloading height |
1300 (variable) |
|
Uninstall distance |
1600 (lengthened or shortened) |
|
Maximum rotation Angle |
±50 |
|
The weight of the machine |
≈5.8 |
|
Appearance (length, width, and height) |
4800×1500×1500 |
|
loading capacity |
≈60m³/h |
|
Minimum turning radius |
4600mm |
|
Walking speed (m / min) |
4.5/2 |
|
Ground clearance |
200 (raised) |
|
Nominal working pressure |
20 |
|
Climbing capacity |
15 (adapted to the ground) |
|
Total motor power |
22KW |
|
Maximum material passes through the size |
780mm×500mm×400mm |
|
(Long, width and height) |
15 (adapted to the ground) |
|
Adaptive section (width and height) |
≥1.8×1.8 |
feature
High Efficiency
The underground tunnel mucking loader is equipped with a high-performance engine and hydraulic system, which can achieve continuous operation, reduce downtime, and improve work efficiency. The engine ensures reduced fuel consumption through advanced fuel injection technology and a precise combustion control system, achieving fuel consumption as low as 30 liters per hour. Compared with manual excavation, the efficiency of the mucking loader can be increased several times, shortening the construction period.
Versatility
The underground tunnel mucking loader can handle different materials and tasks, from cleaning to transporting debris and rock processing. It can be compatible with other attachments such as buckets, rippers, or hydraulic crushers to enhance its functionality. It is also able to operate flexibly in narrow spaces and is suitable for tunnel operations of different specifications.
Safety Performance
The mucking loader is equipped with a number of safety features, including an automatic braking system, anti-skid tracks emergency stop devices, etc., to ensure the safety of operators and projects. Our mucking loader meets international safety standards: ISO 12100 and CE certification, and is equipped with an explosion-proof design, suitable for flammable and explosive underground mine working environments.
Adapt to narrow spaces.
The width of underground tunnel scrapers can be as low as 1.2 meters, and they are highly maneuverable and can adapt to small tunnels with a width of 2-2.5 meters. The compact design of the scraper enables it to operate in narrow tunnels, mines, or underground projects. Its flexible steering and strong operating radius allow the equipment to complete operations in confined spaces.
Easy maintenance
The average maintenance cycle of the scraper is long, with maintenance every 500 hours. The modular design of the scraper makes it simple to maintain, and key components are easy to disassemble and replace, with an average life of more than 10 years.
